jul-mic-rol - Components

View

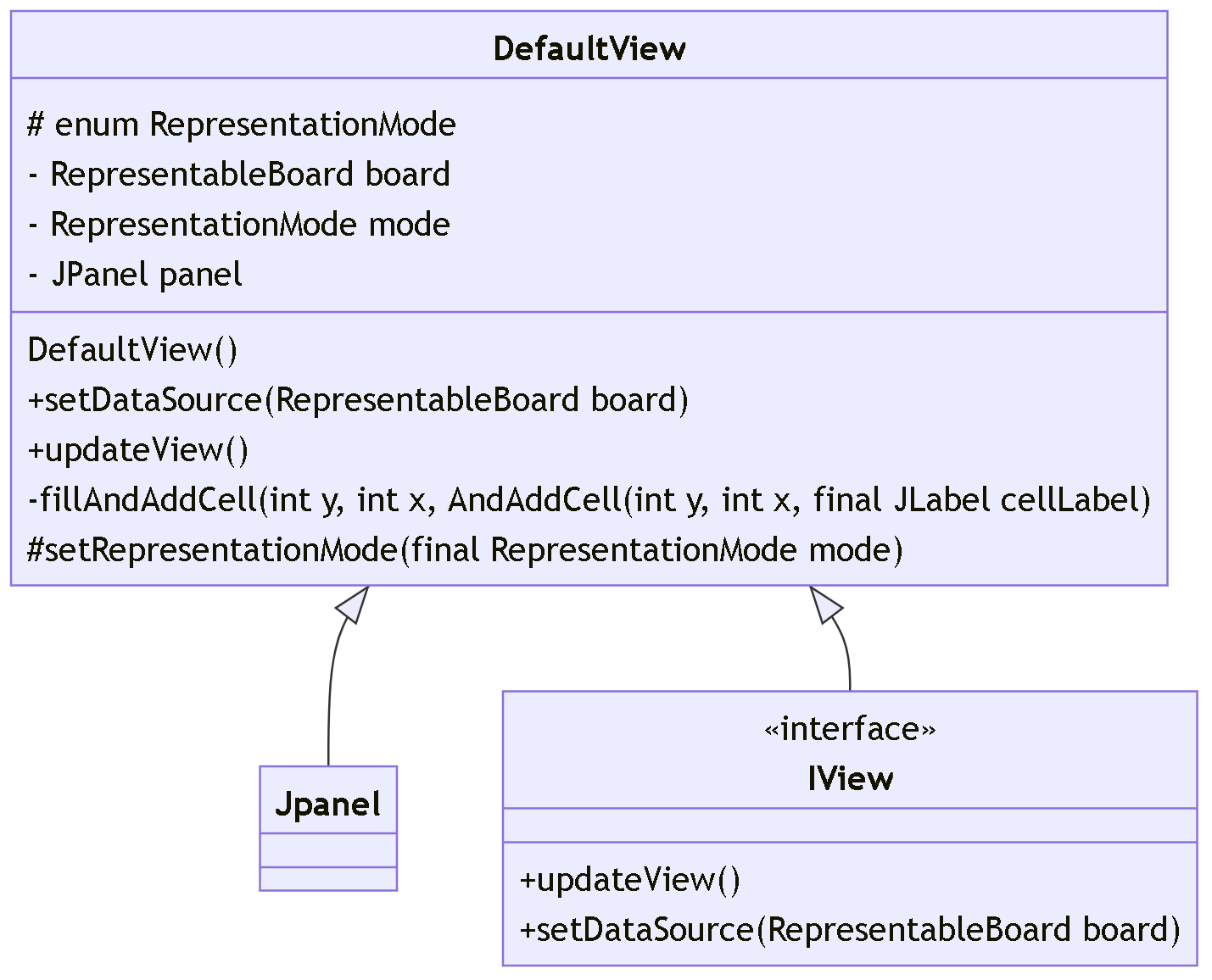

This class diagram describes the internal structure of our view component : The "main" class was initially called DefaultView but it had to be renamed to JulMicRolView to avoid conflicts with other view components, also named DefaultView.

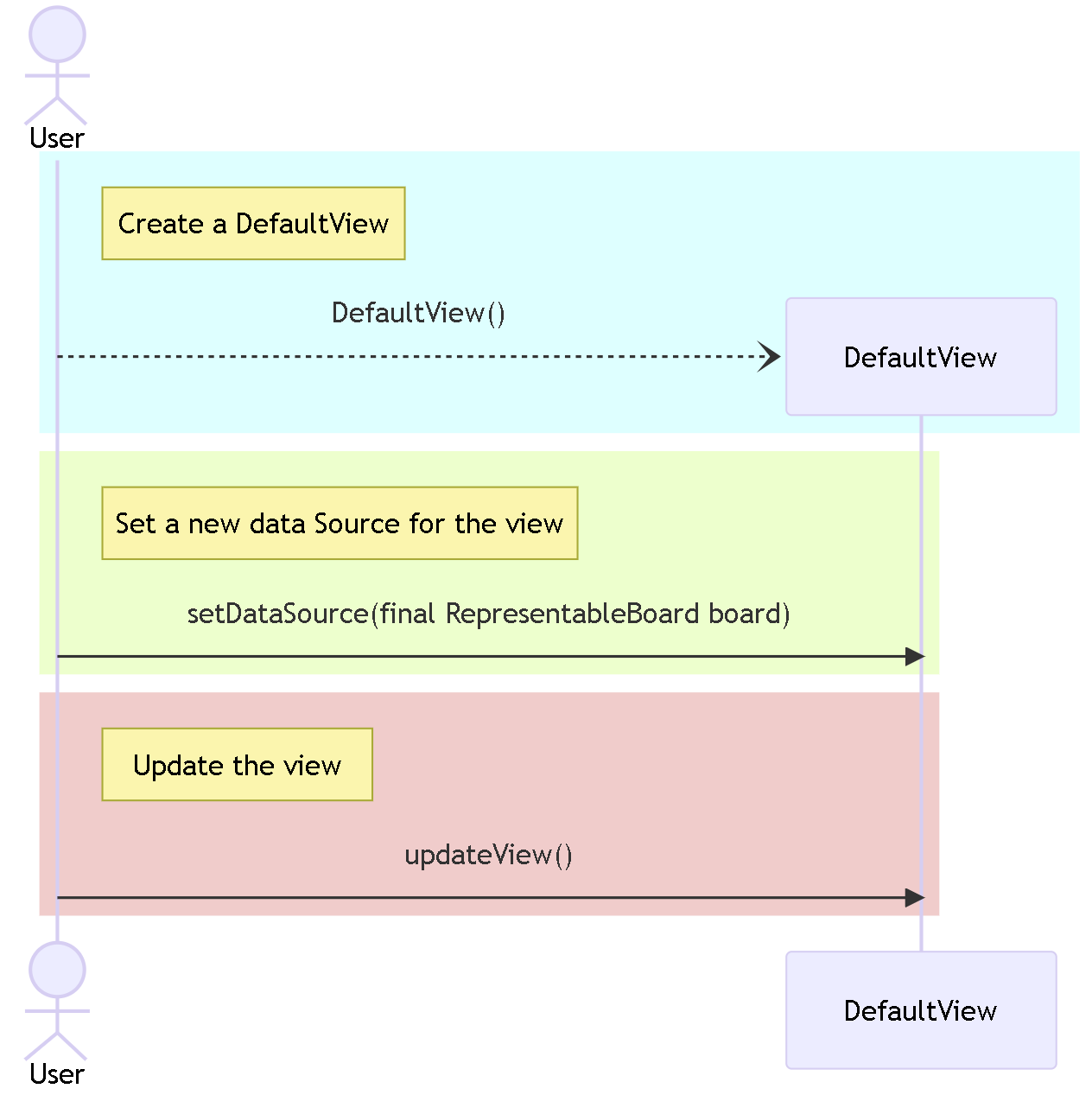

Here below, the sequence diagram explains how interactions with our view component are handled:

Additionally, the user can, in the GUI, chose to display the elements in the board as icons, text or colors. By default, the text representation is used.

Model (Board)

Note: In this integrated project (team blue), we chose to use the model from the Jul-Mic-Rol group.

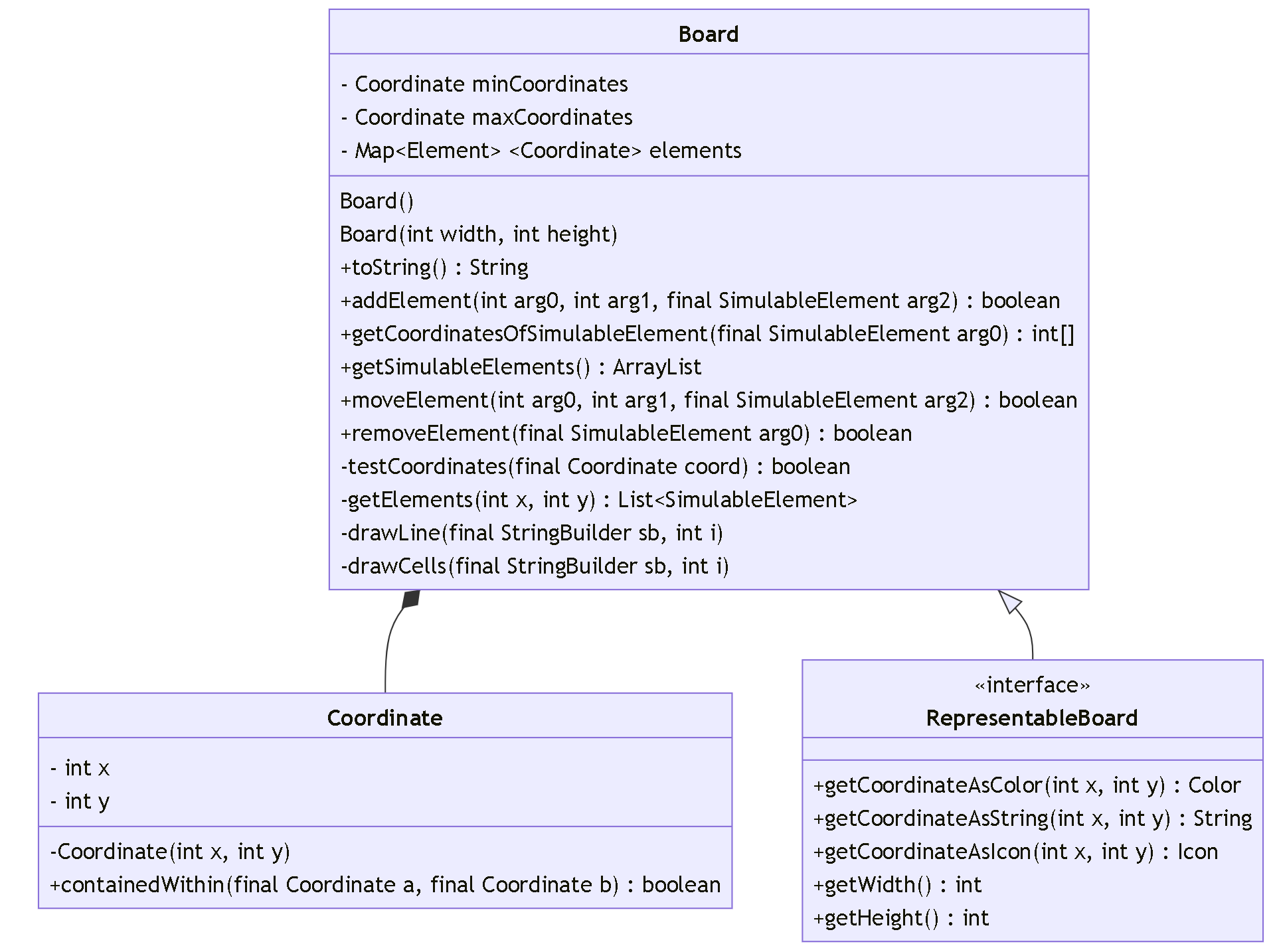

The diagrams below explain the structure and behaviour of this component.

Unfortunately, the sequence diagram is too long to be put as an image in this document.
